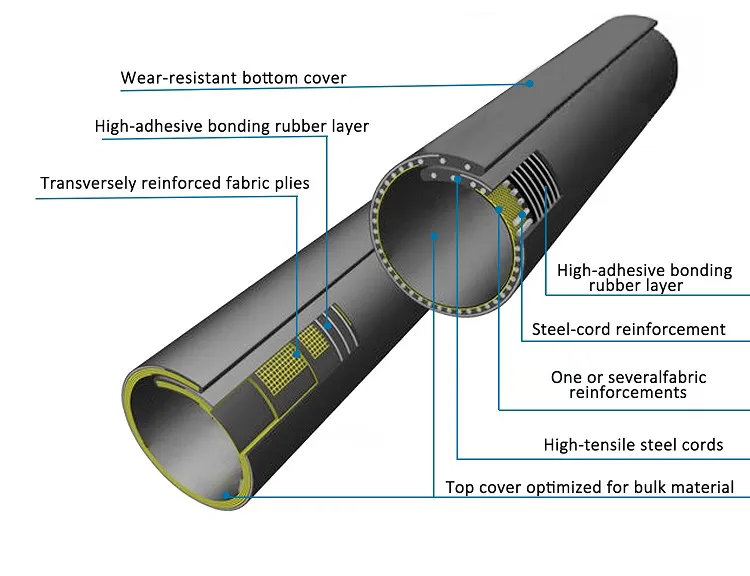

Structure of Tubular Conveyor Belt
Features of Tubular Conveyor Belt
- Closed System Design: The tubular shape of the conveyor belt creates an enclosed channel that prevents material spillage, minimizes dust emissions, and reduces environmental contamination.
- Safe and Efficient Material Transport: The design ensures smooth and reliable transportation of various materials, optimizing energy efficiency by reducing friction, which is especially important for long-distance transportation.
- Environmentally Friendly: By preventing material spillage and dust, the belt helps reduce the negative impact on the environment.
- Exceptional Durability: The tubular conveyor belt offers superior abrasion and tear resistance, making it ideal for heavy-duty operations.
- Space Optimization: These belts can navigate tight curves, steep inclines, and complex layouts, making them perfect for use in spaces with constraints or obstacles.
- High-Speed, Heavy Load Capacity: The belt is designed to withstand high-speed operation and the transportation of heavy loads, even under challenging conditions.
- Long Service Life: With durable construction and robust design, the tubular conveyor belt offers an extended working life, reducing the need for frequent replacements.
Specification of Tubular Conveyor Belt
| Cover Properties | Tensile Strength (MPa) | Breaking Elongation (%) | Abrasion Loss (mm³) | Anti-Ozone | Change Rate of Tensile Strength & Breaking Elongation after Hot Air Ageing (%) |
|---|---|---|---|---|---|
| D | 18.0 | 400 | 90 | No Crack | -25~+25 |
| H | 24.0 | 450 | 120 | No Crack | -25~+25 |
| T1, T2 | 10.0 | 300 | 200 | -45~+45 |
Testing Conditions
-
Anti-Ozone Testing:
- Concentration: (50±5) ×10⁻⁸ (volume fraction)
- Temperature: (40±2)℃
- Elongation: (40±2)%
- Time: 96 hours
-
Hot Air Ageing Testing:
- D and H types: 70℃ × 168 hours
- T1 type: 100℃ × 168 hours
- T2 type: 125℃ × 168 hours
Note:
- D: Designed for high abrasion working conditions
- H: Designed for high tear working conditions
- T1: Heat resistance at 100℃ working conditions
- T2: Heat resistance at 125℃ working conditions
Applications of Tubular Conveyor Belt
- Mining: Efficiently transports minerals, coal, and ores with minimized dust and spillage.
- Cement and Construction: Moves materials like cement and limestone, keeping them protected from contamination.
- Power Plants: Handles coal and ash efficiently while minimizing environmental impact.
- Chemicals and Pharmaceuticals: Safely transports hazardous materials, maintaining contamination control.
- Steel and Metal Processing: Capable of handling scrap, slag, and hot materials in harsh environments.
- Ports and Terminals: Ideal for loading and unloading bulk cargo such as grains and coal, preventing spillage.
- Waste Management: Moves recyclables and waste efficiently, contributing to reduced environmental impact.
- Tunneling and Construction: Handles the removal of excavated materials in tight, underground spaces with ease.
